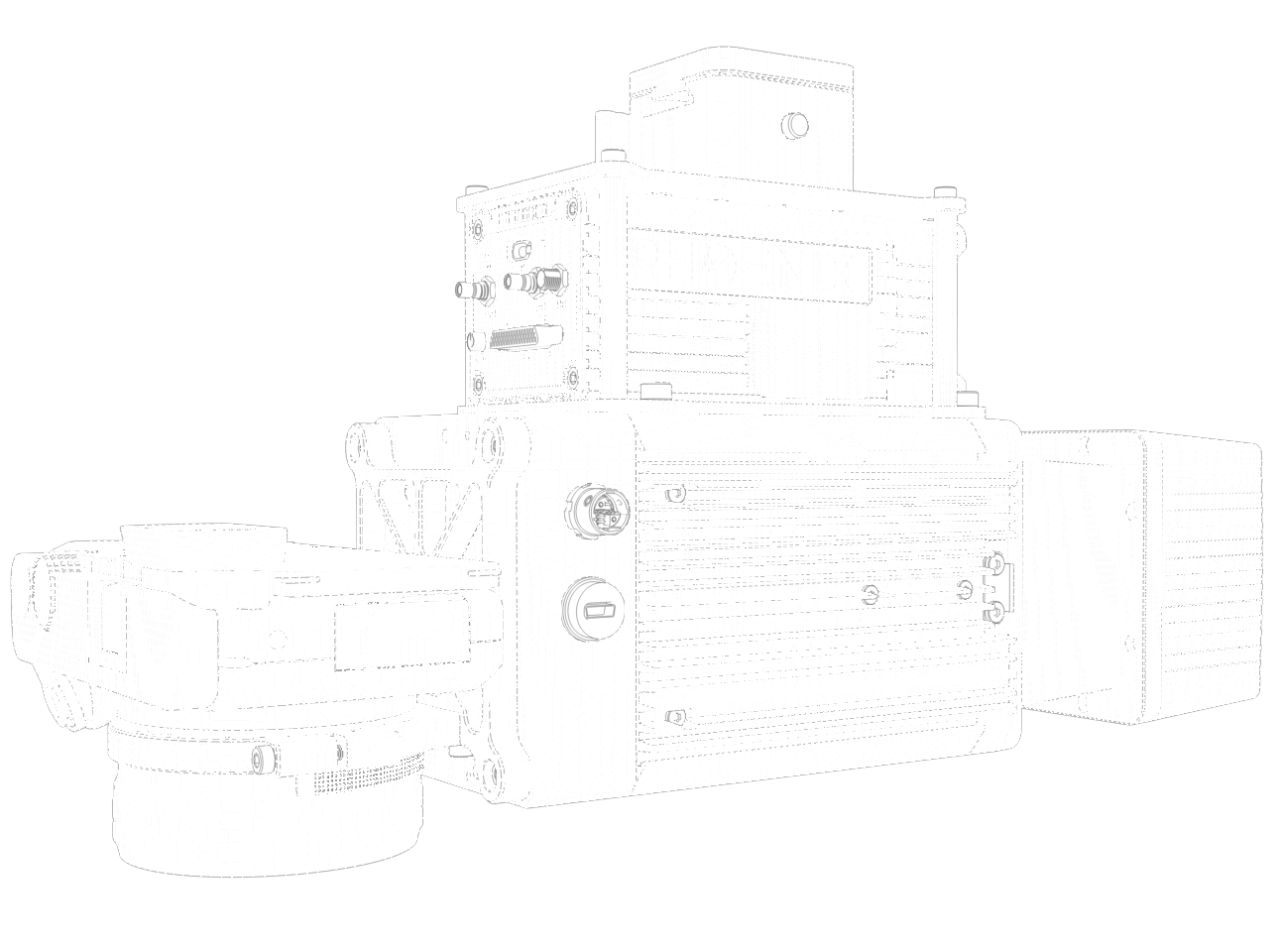

MiniRANGER-LITE
*In stock and ready to ship
HIGH PRECISION MEETS VERSATILITY - A ROBUST INDUSTRY CLASSIC
This system features an impressive recommended AGL of up to 75 meters, filling a major AGL gap in the ultra-lightweight UAV LiDAR market.
With the photogrammetry package, operators of mid-size multirotors, like the DJI M600 Pro or the DJI M300 RTK, can now simultaneously acquire survey-grade LiDAR data and high resolution 42 MP RTK photogrammetry at up to 100 m operating flight altitude. With options for photogrammetry, multispectral, hyperspectral, and thermal imaging, the miniRANGER-LITE is one of Phoenix’s most popular and flexible systems. This system is available in UAV, vehicle, and backpack configurations.
*In stock and ready to ship
20-35mm
RMSE @ 75 Range
250m
@ 60% Reflectivity
75m
Rec. Max AGL
2.2kg
Weight
24.3x14x10cm
Dimensions
Featuring the new Phoenix LiDAR AIR NavBox
The NEW RANGER LITE includes Phoenix LiDAR’s new AIR NavBox. The newest generation, ultra-lightweight rover will help meet the rigorous demands of various industries and applications by greatly increasing flexibility in key areas:
- Reducing weight to allow longer flight-times on lighter UAVs.
- Much improved data throughput to accommodate multiple sensors producing more data as pixelcount and pulse repetition frequencies increase.
The new Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.
Dimensions:
60 x 125 x 50 mmWeight
450gControl via button, 4g, wifi or ethernet
Custom LiDAR Solutions
Phoenix LiDAR Systems
Build the system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.
-
Ideal for configuring heavier mapping payloads on the DJI M600 or the DJI M300
-
Survey-Grade (cm-level) accuracy with 250m+ laser range and outstanding intensity calibration on high altitude and high speed missions
-
Penetrates vegetation to produce accurate results
-
Free online tutorials available; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
-
Free Phoenix Software Suite w/unlimited license; plus NovAtel & Terrasolid options also available (fee may apply)
-
Live/Remote Data Feed: View and analyze data via 4G connection
Optional Upgrades
-
Aerial systems
-
IMU and dual-GPS upgrade options for increased accuracy
-
Integrated UHF radio modem
-
Optional ground vehicle & UAV mounts/accessories
-
Service plans
Primary Applications
-
Vegetation Penetration
-
Utility Infrastructure
-
Open Pit Mining
-
Forestry
-
Construction Site Monitoring
-
Cultural Preservation
-
Glacier & Snowfield Mapping
-
Land Erosion
Navigation System
-
Integrated AIR NavBo
-
Constellation Support: GPS, GLONASS, BEIDOU, GALILEO
-
Support alignment: Kinematic, Dual-Antenna
-
Operation Modes: Real-time, Post-processing optional
-
Accuracy Position: 1cm + 1ppm RMS horizontal
-
PP Attitude Heading RMS Error: 0.009 / 0.019°
Platform Specs
-
Overall Dimensions, Sensor: 24.3 x14 x 10cm
-
Operating Voltage: 12-28 V
-
Power Consumption: ~55 W
-
Weight: 2.2kg / 4.9lbs (3kg w/ Sony A7R)
-
Operating Temperature: – 10˚ – 40˚ C
Flexible Mounting Options
The miniRANGER-LITE is designed to fly on more robust UAVs, including the M600 Pro, the M300 RTK and more. This system can also be adapted for vehicle configurations with Roof Rack or Suction Cups.
LiDAR Sensor Specs
905nm
Laser Properties: Class 1 (eye safe)
20-30mm
Absolute Accuracy: RMSE @ 75m Range
15mm
Range Accuracy: One Sigma @ 50m
3m
Range Min.
100k points
Scan Rate
5x
Returns/Echoes
360°h degrees
Field of View
10-100 Hz
Mirror Speed
0.001°
Angle Measurement Resolution
∆ϑ 0.05° ≤ ∆ϑ ≤ 0.5°
Angular Resolution (Horizontal/Azimuth)
160mm x 50mm
Laser Beam Footprint @ 100m
∆ϑ 0.05° ≤ ∆ϑ ≤ 0.5°
Angular Step Width (between consecutive laser shots)
Point Density Speed & Altitude
Phoenix Software Suite
Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion & export.
