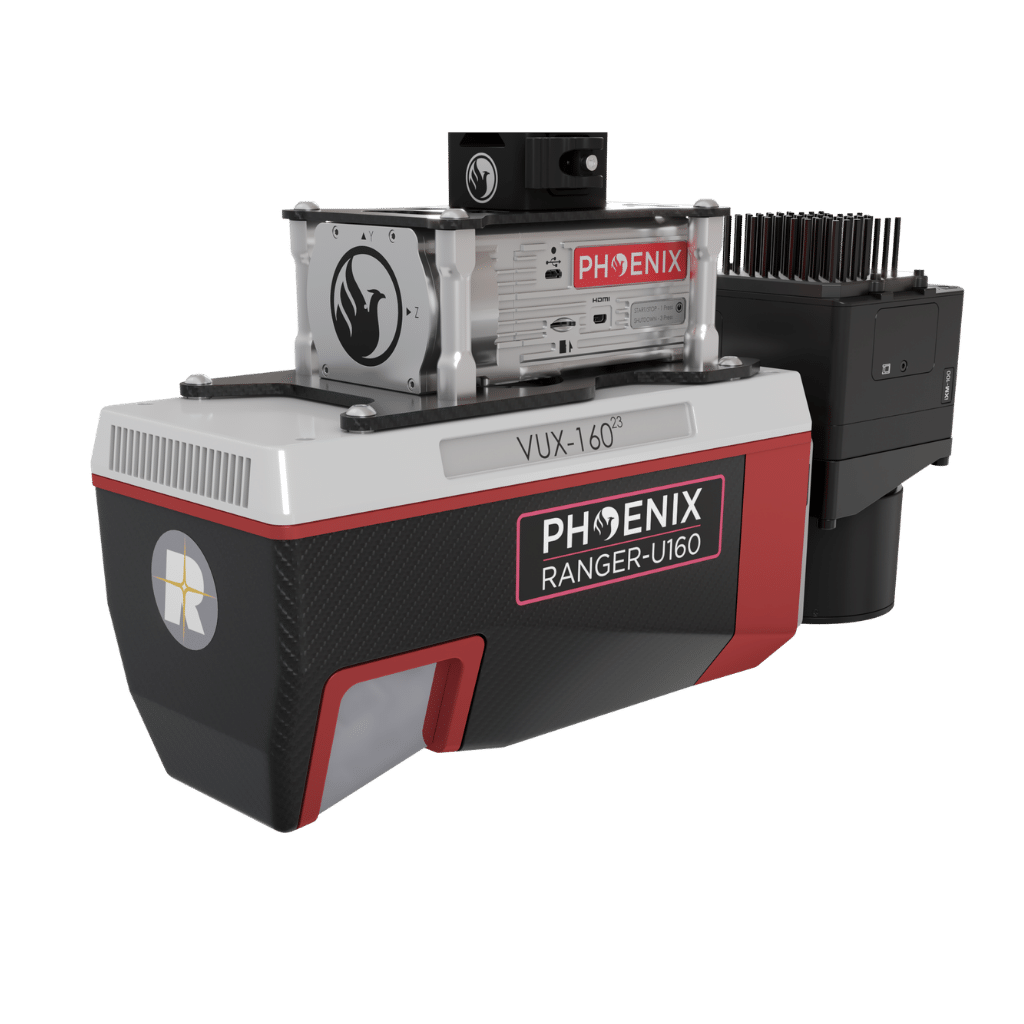

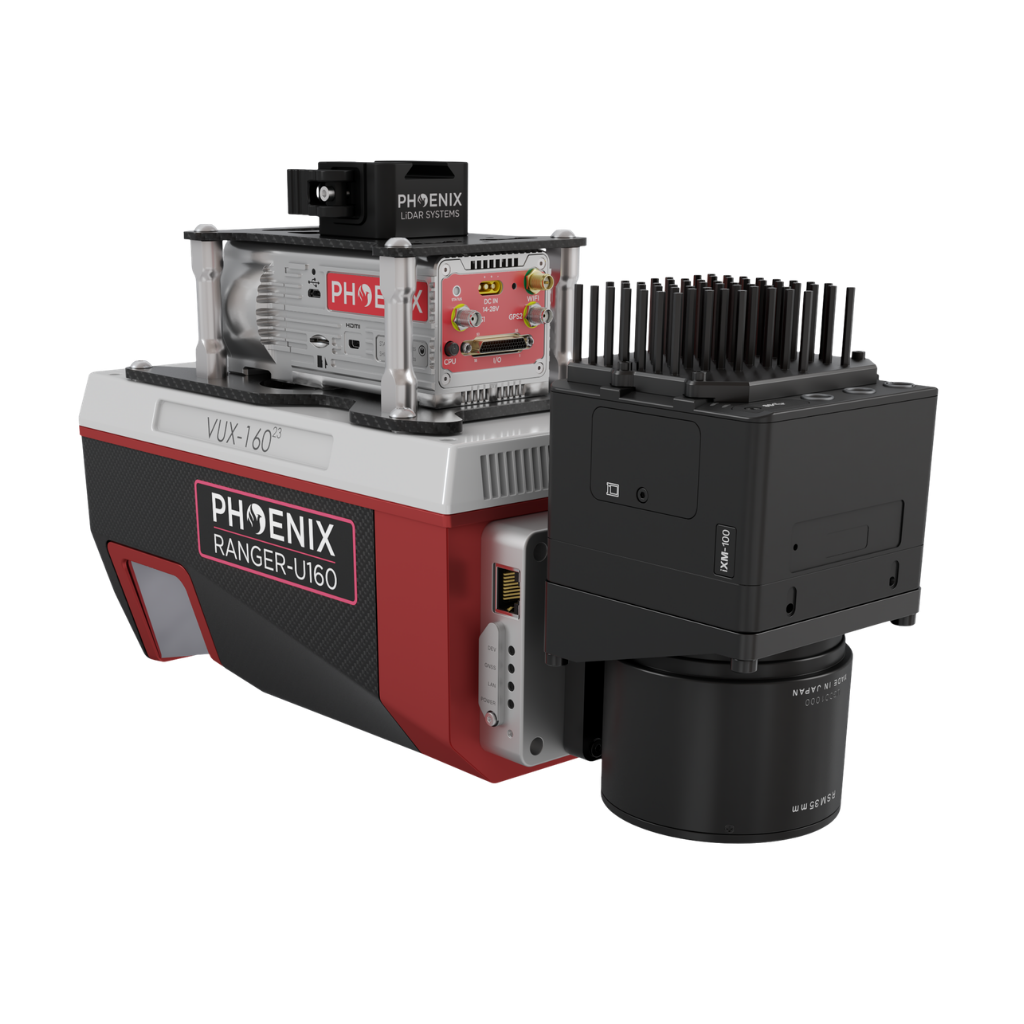

RANGER-U16023
*In stock and ready to ship

AN UPGRADE TO THE RENOWNED RANGER-ULTRA WITH INCREASED RANGE AND RESOLTION
The RANGER-U16023 adds range and density capabilities to an already unrivaled mapping system. Its unique forward and rear looking field of view was designed to minimize laser shadowing and provide a high level of detail on vertical surfaces.
Pulse rates up to 2.4 MHz and the ability to be carried by a variety of aircraft make this a highly versatile system that is suitable for mapping at various scales in order to meet your unique project objectives.
The RANGER-U16023 is ideal for corridor mapping applications such as utility, rail and pipeline inspection.
*In stock and ready to ship
1.5-3 cm
RMSEz @ 120m Range
1800k
Shots per Second
900m
Rec. Max AGL
980m
@ 20% Reflectivity
3.4kg
Weight

Featuring the Phoenix LiDAR AIR NavBox
This RANGER system includes Phoenix LiDAR’s AIR NavBox. The newest generation, ultra-lightweight rover will help meet the rigorous demands of various industries and applications by greatly increasing flexibility in key areas:
-
Reducing weight to allow longer flight-times on lighter UAVs.
-
Much improved data throughput to accommodate multiple sensors producing more data as pixel count and pulse repetition frequencies increase.
The Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.
Dimensions:
60 x 125 x 50 mmWeight:
450gControl via button, 4G, wifi/ethernet
Custom LiDAR Solutions
Phoenix LiDAR Systems
Build the system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.
-
Survey-Grade (cm-level) accuracy with 250m+ laser range and outstanding intensity calibration on high altitude and high speed missions
-
Penetrates vegetation to produce accurate results
-
Free online tutorials available; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
-
Free Phoenix Software Suite; plus NovAtel & Terrasolid options also available (fee may apply)
-
High accuracy due to newest-generation MEMS IMUs
-
Live/Remote Data Feed: View and analyze data in real time or transmit live data to remote viewers via 4G connection
Optional Upgrades
-
Aerial systems
-
IMU and dual-GPS upgrade options for increased accuracy
-
Integrated UHF radio modem
-
Optional rotocraft & UAV mounts/accessories
-
Service plans

Primary Locations
-
Utility Infrastructure
-
Construction Surveying
-
Oil & Gas Surveying
-
Railway Track Mapping
-
Agriculture & Forestry
-
Open Pit Mining
-
General Mapping
Navitation System
-
Integrated AIR NavBox
-
Constellation Support: GPS, GLONASS, BEIDOU, GALILEO
-
Support alignment: Kinematic, Dual-Antenna
-
Operation Modes: Real-time, Post-processing optional
-
Accuracy Position: 1cm + 1ppm RMS horizontal
-
PP Attitude Heading RMS Error: 0.010° / 0.019°
Platform Specs
-

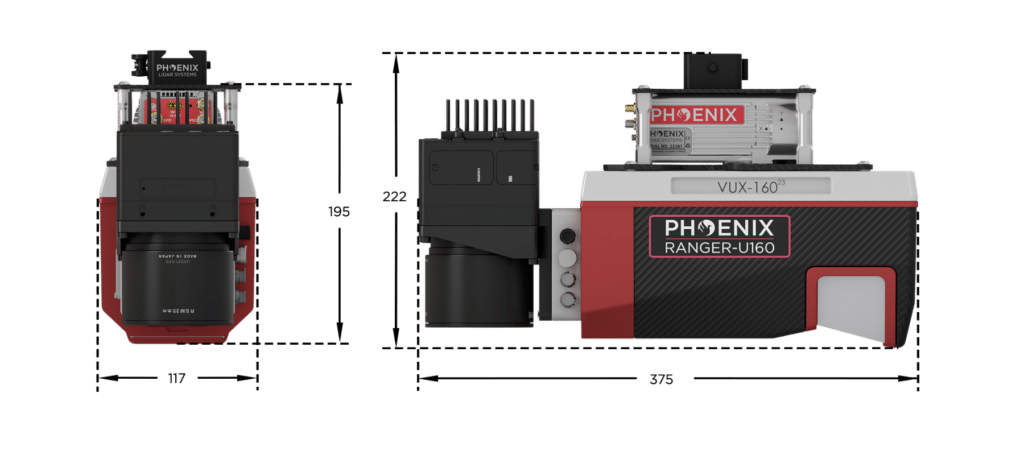

Overall Dimensions (with AIR NavBox) 27.5 x 11.7 x 22.2 cm
-
Operating Voltage: 12-28 V DC
-
Power Consumption: 75 W
-
Weight: 3.4 kg / 7.5 lbs
-
Operating Temperature: 0˚ – 40˚ C
Flexible Mounting Options
The RANGER-U16023 is designed for mounting on a wide variety of rotorcraft. Combine the power of the RANGER-U16023 system with our industry leading MissionGuidance software to confidently and accurately execute manned data acquisition missions.
LiDAR Sensor Specs
1550nm
Laser Properties: Class 1 (eye safe)
10mm
Accuracy
5mm
Precision
5m
Minimum Range
1800 kHz
Pulse Rate
-10˚ / 0˚ / +10˚
scan angles (-15˚ / 0˚ / +15˚ at edge of swath)
100°
Field of View
50-400
Lines per Second
0.001°
Angle Measurement Resolution
40mm @ 100m, 200mm @ 500m, 400mm @ 1000m
Laser Beam Footprint @ 100/500/1000m
0.0033° ≤ ∆ϑ ≤ 0.032°
Angular Step Width (between consecutive laser shots)
Point Density Speed & Altitude






Phoenix Software Suite
Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion, export and post-processing in the cloud.
