RANGER-ULTRA
*In stock and ready to ship
THE ULTIMATE CORRIDOR MAPPING SYSTEM
The RANGER-ULTRA is an airborne laser scanner with an impressive combination of weight, range, accuracy and pulse rate. It is equipped with a unique forward and rear looking FOV designed to minimize laser shadowing and provide geometry on complex vertical structures on a single pass. With its wide field of view of 100 degrees and an extremely fast pulse repetition rate of up to 1.8 MHz, the RANGER-ULTRA is perfectly suited for high point density corridor mapping applications such as power line, railway track and pipeline inspection.
Phoenix offers several RANGER-ULTRA camera accessories as well as UAV and manned aircraft attachment options. Please visit our booth or website to learn more about this amazing new addition to the Ranger series!
*In stock and ready to ship
25-50mm
RMSE @ 350 Range
1800k
Shots per Second
720m
Rec. Max AGL
760m
@ 20% Reflectivity
3.0kg
Weight
Featuring the Phoenix LiDAR AIR NavBox
This RANGER system includes Phoenix LiDAR’s AIR NavBox. The newest generation, ultra-lightweight rover will help meet the rigorous demands of various industries and applications by greatly increasing flexibility in key areas:
-
Reducing weight to allow longer flight-times on lighter UAVs.
-
Much improved data throughput to accommodate multiple sensors producing more data as pixel count and pulse repetition frequencies increase.
The Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.
Dimensions:
60 x 125 x 50 mmWeight:
450gControl via button, 4G, wifi/ethernet
Custom LiDAR Solutions
Phoenix LiDAR Systems
Build the system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.
-
Ideal for configuring heavier mapping payloads on the DJI M600
-
Survey-Grade (cm-level) accuracy with 250m+ laser range and outstanding intensity calibration on high altitude and high speed missions
-
Penetrates vegetation to produce accurate results
-
Free online tutorials available; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
-
Free Phoenix Software Suite; plus NovAtel & Terrasolid options also available (fee may apply)
-
High accuracy due to newest-generation MEMS IMUs
-
Live/Remote Data Feed: View and analyze data in real time or transmit live data to remote viewers via 4G connection
Learn why the RANGER-ULTRA is unmatched in performance and versatility.
Optional Upgrades
-
Aerial systems
-
IMU and dual-GPS upgrade options for increased accuracy
-
Integrated UHF radio modem
-
Optional ground vehicle & UAV mounts/accessories
-
Service plans
Primary Locations
-
Utility Infrastructure
-
Railway Track Mapping
-
Agriculture & Forestry
-
Open Pit Mining
-
General Mapping
Navitation System
-
Integrated AIR NavBox
-
Constellation Support: GPS, GLONASS, BEIDOU, GALILEO
-
Support alignment: Kinematic, Dual-Antenna
-
Operation Modes: Real-time, Post-processing optional
-
Accuracy Position: 1cm + 1ppm RMS horizontal
-
PP Attitude Heading RMS Error: 0.010° / 0.019°
Platform Specs
-
Overall Dimensions (with AIR NavBox) 352 x 164 x 185 mm
-
Operating Voltage: 12-28 V DC
-
Power Consumption: 75 W
-
Weight: 3.5 kg / 7 lbs
-
Operating Temperature: 0˚ – 40˚ C
Flexible Mounting Options

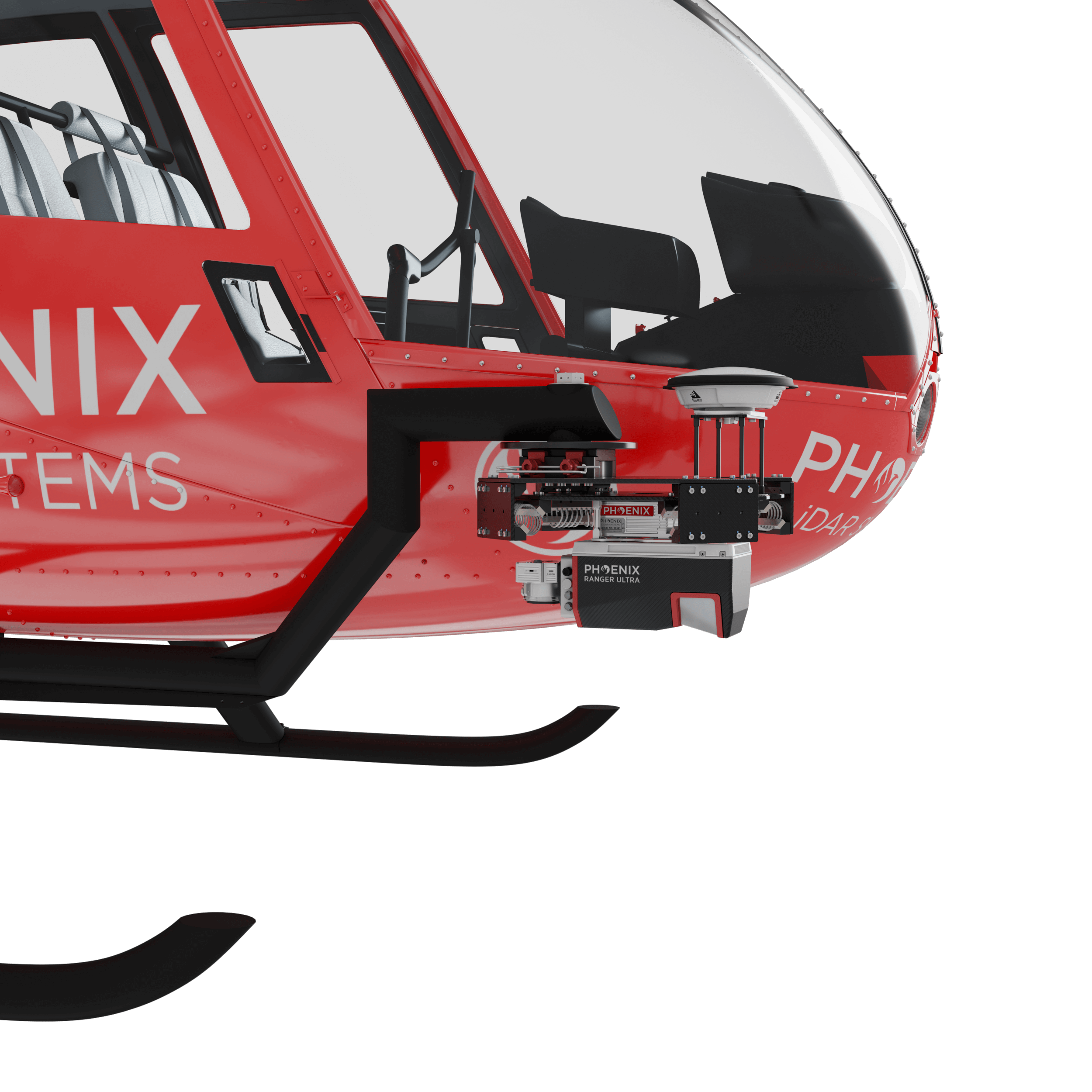

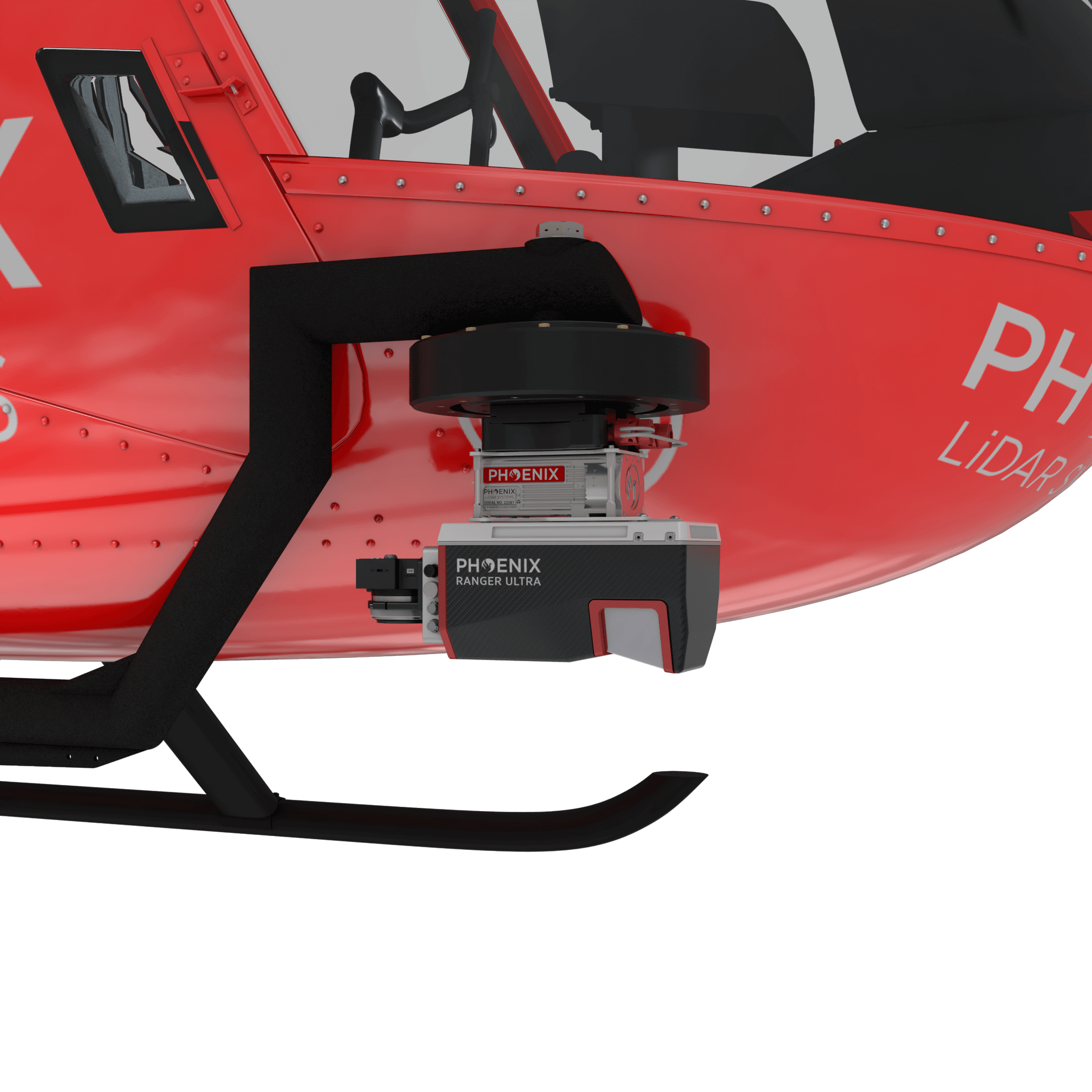

The RANGER-ULTRA is designed with flexible mounting options in mind. Easily mountable to unmanned platforms (UAVs) and to helicopters, gyrocopters, and other small manned aircrafts.
LiDAR Sensor Specs
1550nm
Laser Properties: Class 1 (eye safe)
10mm
Accuracy
5mm
Precision
5m
Minimum Range
1800 kHz
Pulse Rate
-10˚ / 0˚ / +10˚
scan angles (-15˚ / 0˚ / +15˚ at edge of swath)
100°
Field of View
50-400
Lines per Second
0.001°
Angle Measurement Resolution
40mm @ 100m, 200mm @ 500m, 400mm @ 1000m
Laser Beam Footprint @ 100/500/1000m
0.0033° ≤ ∆ϑ ≤ 0.032°
Angular Step Width (between consecutive laser shots)
Point Density Speed & Altitude
Phoenix Software Suite
Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion, export and post-processing in the cloud.
