RANGER-XL

*In stock and ready to ship





LONGEST RANGING SENSOR DESIGNED TO DENSELY MAP WIDE AREAS FROM HIGH ALTITUDES


The Ranger-XL is a lightweight airborne laser scanner, specially designed for use on UAS and small manned airplanes or helicopters. With its wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1.8 MHz, the Ranger-XL is perfectly suited for high point density corridor mapping applications such as power line, railway track and pipeline inspection.
Phoenix offers several Ranger-XL camera accessories as well as UAV and manned aircraft attachment options. Please visit our booth or website to learn more about this amazing new addition to the Ranger series!
*In stock and ready to ship



25-50mm

RMSE @ 350 Range

1800k

Shots per Second

900m

Rec. Max AGL

1200m

@ 20% Reflectivity

4.4kg

Weight

Featuring the Phoenix LiDAR AIR NavBox

This RANGER system includes Phoenix LiDAR’s AIR NavBox. The newest generation, ultra-lightweight rover will help meet the rigorous demands of various industries and applications by greatly increasing flexibility in key areas:

  • Reducing weight to allow longer flight-times on lighter UAVs.

  • Much improved data throughput to accommodate multiple sensors producing more data as pixel count and pulse repetition frequencies increase.

The Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.

  • Dimensions:
    60 x 125 x 50 mm

  • Weight:
    450g

  • Control via button, 4G, wifi/ethernet

    Custom LiDAR Solutions

    Phoenix LiDAR Systems

    Build the system you need to meet the growing demands of your clients in varying industries, from mining to agriculture and construction to forestry.

    • Ideal for configuring heavier mapping payloads on the DJI M600
    • Survey-Grade (cm-level) accuracy with 250m+ laser range and outstanding intensity calibration on high altitude and high speed missions
    • Penetrates vegetation to produce accurate results
    • Free online tutorials available; PLUS complete Acquisition/Post-Processing/Pilot/Certification training also available (fees may apply)
    • Free Phoenix Software Suite w/unlimited license; plus NovAtel & Terrasolid options also available (fee may apply)
    • High accuracy due to precision Fiber Optic Gyro IMU
    • Live/Remote Data Feed: View and analyze data in real time or transmit live data to remote viewers via 4G connection

    Optional Upgrades

    • Aerial systems
    • IMU and dual-GPS upgrade options for increased accuracy
    • Integrated UHF radio modem
    • Optional ground vehicle & UAV mounts/accessories
    • Service plans

    Flexible Mounting Options

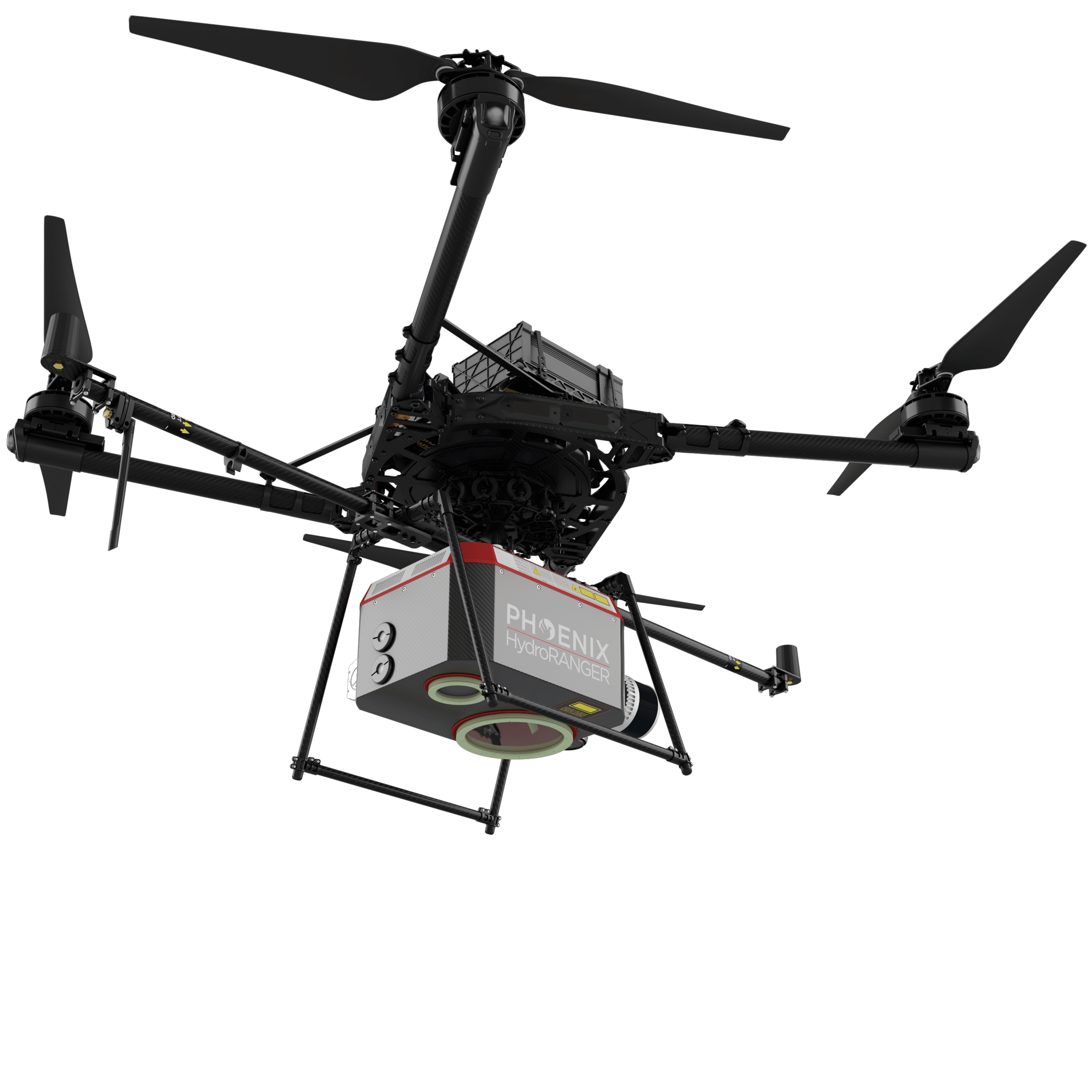

    The RANGER-XL is designed with flexible mounting options in mind. Easily mountable to unmanned platforms (UAVs) and to helicopters, gyrocopters, and other small manned aircrafts.


    LiDAR Sensor Specs

    1550nm

    Laser Properties: Class 1 (eye safe)

    20mm

    Accuracy

    15mm

    Precision

    5m

    Minimum Range

    1800kHz points

    Scan Rate

    15x

    Returns/Echoes

    75°

    Field of View

    40-400 Hz

    Line Speed

    0.001°

    Angle Measurement Resolution

    0.05° ≤ ∆ϑ ≤ 0.5°

    Angular Step Width (between consecutive laser shots)

    35mm @ 100m, 175mm @ 500m, 350mm @ 1000m

    Laser Beam Footprint

    Point Density Speed & Altitude

    Phoenix Software Suite

    Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion, export and post-processing in the cloud.
